Tutorial: A Trick with Kill White

Here’s a trick you can do with the free Photoshop filter Mike and Kael’s Kill White (which is an awesome filter for several reasons).

So I have a picture of a flower.  Nothing special.  There’s not a whole lot of contrast and it’s just kind of blah.  I tried playing with the contrast and the colors and I just wasn’t happy with it.  So, I went back to the beginning and did a trick with Kill White instead.

Here’s the original:

I copied the layer.

And converted it to black and white.  That’s Image->Adjustments->Black & White.  I played with the filters until I came up with one that made mostly the leaves darker, but the petals stayed bright.  This time it was the High Contrast Red Filter, but if none of the pre-sets look quite right, you can manually adjust the filter.

Now you have two layers.  A black and white and a color.  Here’s where I use the handy-dandy kill white filter on the black and white layer.  That transformed all the white in the layer to transparent and you get this:

Almost there, but just a bit too dark.  So I adjust the vibrance of the bottom layer.  That’s Image->Adjustments->Vibrance.  In this case I upped the vibrance and the saturation by 10.  Then I upped the brightness by 40 under Image->Adjustments->Brightness/Contrast.  Then I adjusted the transparency of the top layer to 80%.  And came up with this:

Okay, so maybe not an award-winning photo, but it’s a heck of a lot better than the original.

See what I mean?

Cropping helps.

The reason this works is with the transparent and black overlay, I can up the brightness and saturation of the colors I want without losing the nice dark shadows of the parts I want in shadow.  It’s a very targeted way to up the contrast on a photo.

Advertisements

Tutorial: Digitally coloring a hand-drawn line drawing in Photoshop

Ever since I bought my Wacom tablet, I’ve been working pretty exclusively in a digital environment.  It really makes a lot of things easier for me.  But back before my tablet, I would hand-draw the lines for an image and only add the colors on the computer.  I know lots of artists prefer to work that way and I’d like to share a couple of tricks I know to get better results from that process.

First off, you need to scan the drawing to get it into digital format.  I always scan this sort of image in greyscale at 300 resolution.  If you’re going to print the image, 300 dpi is the very minimum you want to work with.  It doesn’t hurt to make it even higher.

Let’s start with a challenge.  Let’s say that the image is too large to fit on your scanner’s bed.  As long as you have Photoshop, that’s not a problem.  You can use the photomerge feature.  I’m on Photoshop CS5, but Photoshop Elements also has it.

Scan in the two halves (or four corners) of the image so that they overlap at least some at the edges.  Save all the files somewhere you can get to and open them in Photoshop.

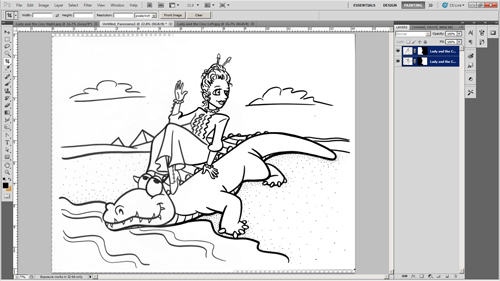

Then go to File->Automate->Photomerge.  Since they’re already opened, just click the button for Add Open Files.  Alternatively, you could also select the image files from your folders.  Choose the Auto radio button, if it’s not already selected.  Click OK.

Once it’s finished, merge all layers and you can close the original files.

Save this merged image file before continuing.

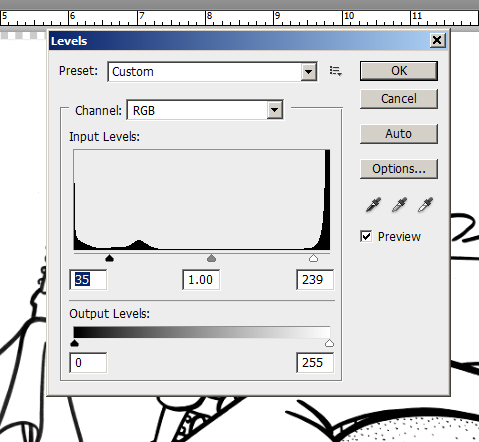

Make sure the image mode is RGB color, then clean up your lines.  Adjust the levels so that the lines are pure black and the page is pure white.  Or, that’s assuming you want your blacks to be pure black.  If it’s more of a pencil sketch, you might want them to be 50% or 75% black.  Whatever.  Regardless, the white needs to be 100% white.  Don’t go overboard adjusting the levels, though.  You don’t want to make the edges of the lines too pixelated.  You want to preserve those smooth shades of grey on the edges of the lines.

Erase any smudges, stray lines, etc. that you don’t want in the final picture.  You won’t be able to easily adjust the contrast later, so make sure to get the lines as you want them now

As always, remember to save often.

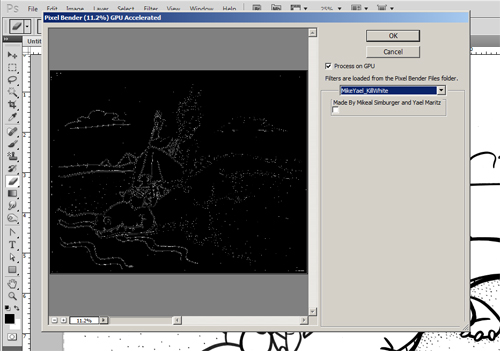

Now it’s time to use the most useful free plug-in there is for an illustrator working with line drawings: Mike and Yael’s Kill White.  First off, make sure that you’re not working on the background layer.  If you’re not sure, double-click on the layer to convert it to a regular layer rather than a background layer. Open up the Kill White filter and run it.

Edit:  This is a pretty old post.

I’ve since learned a better way to remove all the white from a layer using the Channels tool.  It works just as well, but without having to open PixelBender and run an add-on filter.  I talk about that here.  But the Kill White filter will also work. There are other techniques that work also.

I also now know that you can make the white invisible by just changing the blend mode to “Darken”.  (“Multiply”, “Color Burn”, and “Linear Burn” have similar effects that will also make white invisible and which you might find useful.) Changing the blend mode is probably the easiest thing to do.  However, there are sometimes reasons you might want the white actually removed rather than merely invisible.  I usually pull the white completely out, even if I don’t strictly need to. I figure, why keep it if you don’t need it?  Occasionally it can interfere with filters or the selection tool or something.  So, I just get rid of it if I don’t need it.

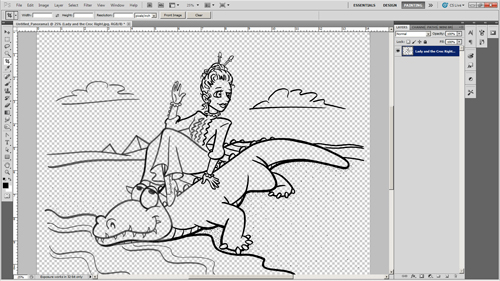

Now you have a layer with all the white converted to a transparency.

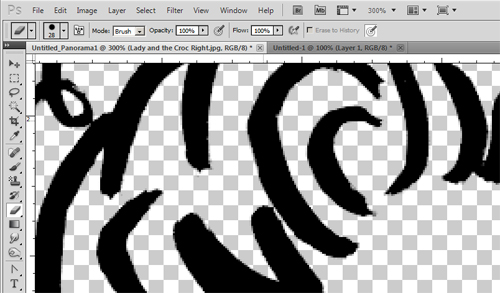

Notice that it converted it cleanly?  There are no white edges around the lines.  The filter will actually convert a 50% grey pixel to a pure black pixel that’s 50% transparent.  Same thing with colors.  That means no ugly white edges.  I’ve blown the image up to 300% below to show that.

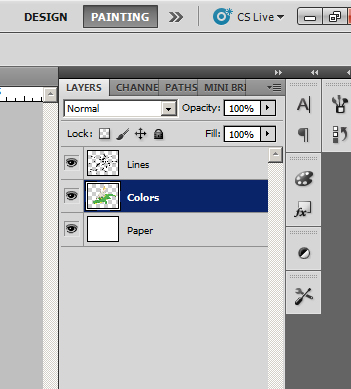

Now you have your line layer.  Create a new layer, fill it with white and position it underneath your line layer.  Think of this as your paper layer.  Create another layer and position it between your line layer and your paper layer.  This is your color layer.  Paint your colors here and they’ll be underneath the lines, but on top of the paper.  For further flexibility, you can create a new color layer for each individual color you use.  That way you can easily isolate each color and adjust it separately as necessary as you work.

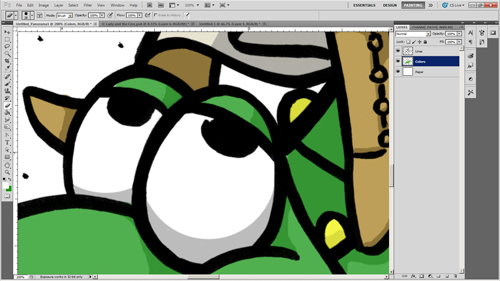

Here’s another close-up.  See?  No White edges.

And there you go.  That’s how I color a line drawing with Photoshop.  I hope this makes someone’s life easier.

Post Edited Nov. 4, 2012:  Minor text changes and images added for Illustration Friday’s reblog.

Playing with Photo Manipulation with Photoshop

I came across this photo that I was really impressed with.  It’s of a man dressed as Megamind standing on a city street.  The highlights and shadows on his cape and false cranium looked very painting-like. The background looked almost inconsistent because it was real.  So, I wanted to see what I could do with photo manipulation to improve it.

First, some credits, since this isn’t my photo:

Original photo was by Elemental (who’s okay with me using it)
Costumed Villain played by Kildread
Costume Created by God Save The Queen Fashions

Original Photo:

So, I took this and applied a Photoshop Oil Paint filter to come up with this:

This was pretty good.  The filter simplified the background nicely.  However, this is a picture of a costumed villain.  It didn’t seem right for him to be walking around on the streets in broad daylight.  It would be better as a night scene. I also wanted to put in the invisible car.

How’d I do it?  Well, in the interest of disclosure, I had some instruction from someone called thinwhite_duke over on the LiveJournal community.  Anyway, I used two layers with a copy of the image on both.  I cut out Megamind, the sky, and the red light on the traffic signal.  Then I Adjusted the levels on the layer with the scene to make it dark and night-like.  Surprisingly, the signs magically transformed into neon signs without my actually doing anything.  Then I used variations on both layers to make it bluer.  I added a layer between the two and put a gradiation in for the sky.  And I burned and dodged both the dark scenery layer and the original layer to touch things up.  Then I painted the highlights for the invisible car on another layer.  It was actually very easy.
